SBB-t9 SERIES

✔️ Application Scenario
SBB-t9 series 4-terminal shunts are ideal for BMS, EV traction inverters, and precision power supplies, delivering accurate voltage sensing from -55℃ to 170℃.

✔️ R&D Technology
Featuring true 4-terminal Kelvin connection with Manganin/Karma/CuMnSn alloys, SBB-t9 series achieves low TCR and eliminates lead resistance errors for high-precision current sensing.

✔️ Production Strength
Fully automated production lines and 100% electrical testing ensure consistent quality, with annual capacity exceeding 150 million pieces for 2726/4026 t9 packages.

✔️ Stock Availability
SBB-t9 series standard values (0.2mΩ, 0.5mΩ, 1.0mΩ) are in stock now, available in 1000pcs per reel for fast global delivery.

✔️ Cooperation Case
A leading German automotive supplier adopted SBB-M-0.5F-y-t9 for their 800V traction inverter current sensing, achieving ±0.5% accuracy and zero failures after 5000 thermal cycles.

Email

Download

SBB-t9 Series Template Description

SBB-t9 series 4-terminal shunt resistors are SMD type current sensing solutions with true Kelvin connection for ultra-high precision, offering power ratings up to 12W in compact 2726 and 4026 packages with specialized t9 design.

The Manganin, Karma, and CuMnSn alloy materials for low TCR are sourced from world-class suppliers such as Isabellenhütte, ensuring exceptional stability and accuracy for high-current automotive applications up to 170℃.

A leading European automotive Tier 1 supplier has been adopting SBB-t9 series precision 4-terminal shunts for their EV traction inverter current sensing for over 4 years, with cumulative shipments exceeding 25 million pieces and zero field failures.

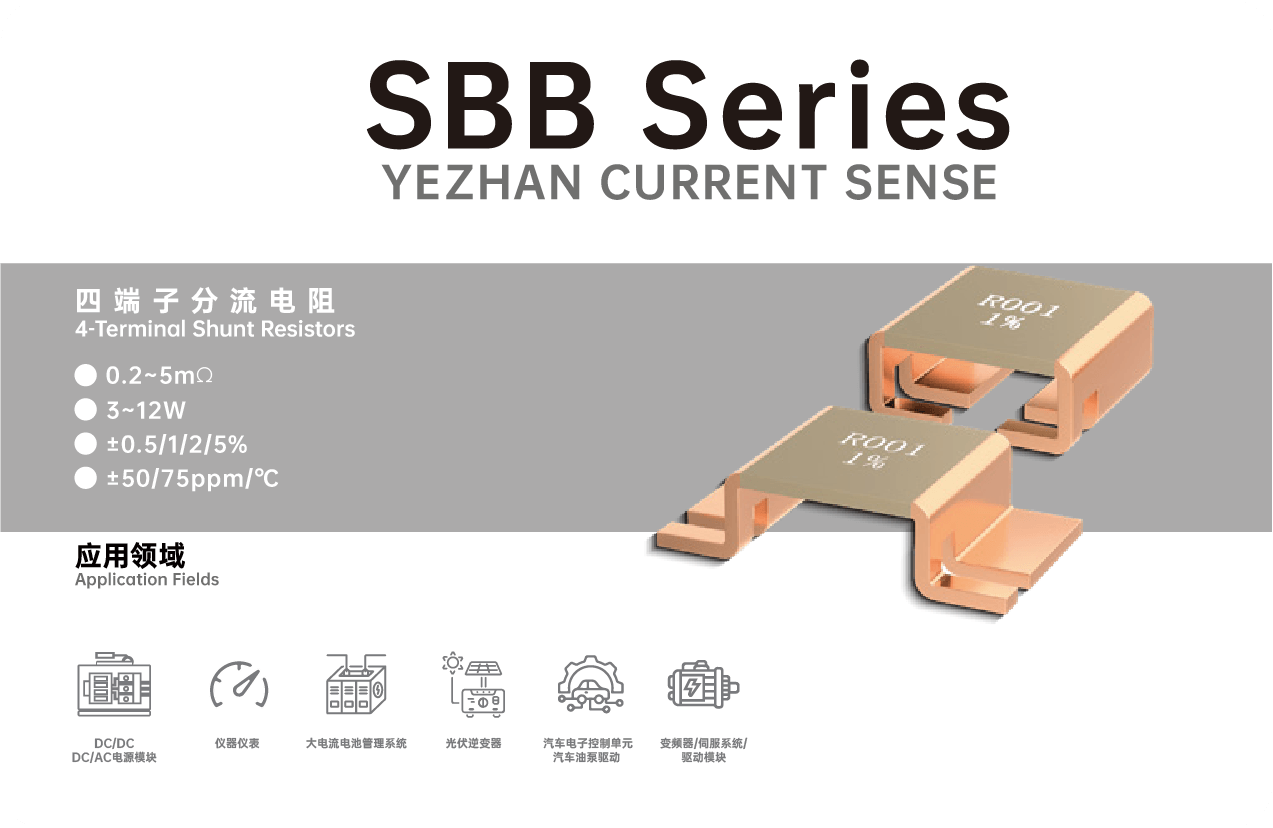

4-Terminal Shunt Resistor 4026 12W AEC-Q200

Factory view 1

Standard laboratory of high precision resistors 1

Download

SBB-t9系列规格书A1.3.pdf
