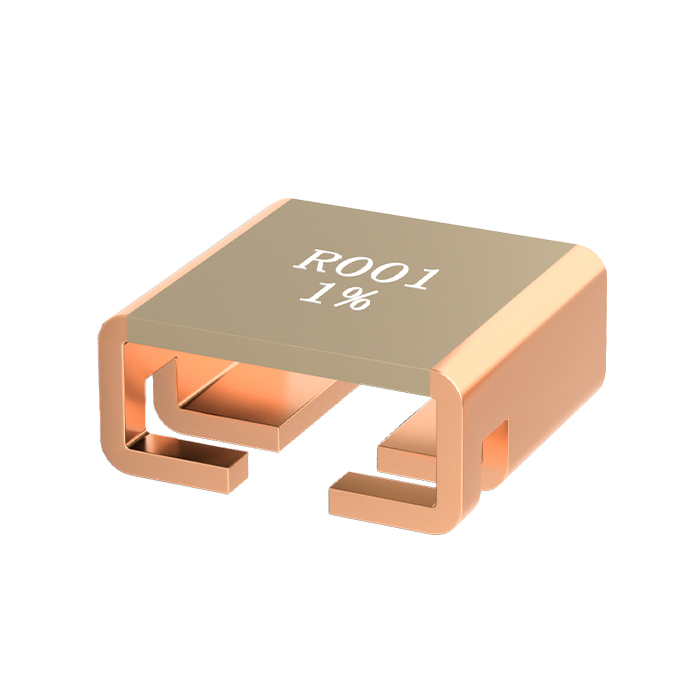

SBBP SERIES

✔️ Application Scenario
SBBP series 4-terminal shunts are ideal for BMS, EV traction inverters, and precision power supplies, delivering accurate voltage sensing from -55℃ to 170℃.

✔️ R&D Technology
Featuring true 4-terminal Kelvin connection with Manganin and Karma alloys, SBBP series achieves ultra-low TCR down to ±20ppm/℃ (Karma) and eliminates lead resistance errors.

✔️ Production Strength
Fully automated production lines and 100% electrical testing ensure consistent quality, with annual capacity exceeding 100 million pieces for In/Out package options.

✔️ Stock Availability
SBBP series standard values (0.2mΩ, 0.5mΩ, 1.0mΩ) are in stock now, available in 1000pcs per reel for fast global delivery.

✔️ Cooperation Case
A leading European EV manufacturer adopted SBBP-K-0.5F-y for their 800V traction inverter current sensing, achieving ±0.5% accuracy and zero failures after 5000 thermal cycles.

Email

Download

SBBP Series Template Description

SBBP series 4-terminal shunt resistors are high-performance SMD current sensing solutions with true Kelvin connection, offering power ratings up to 12W and flexible In/Out terminal configurations for optimized PCB layout.

The Manganin and Karma alloy materials for ultra-low TCR down to ±20ppm/℃ (Karma, -55℃ to 170℃) are sourced from world-class suppliers such as Isabellenhütte, ensuring exceptional stability and accuracy for high-current automotive applications.

A leading European EV manufacturer has been adopting SBBP series precision 4-terminal shunts for their 800V traction inverter current sensing for over 3 years, with cumulative shipments exceeding 20 million pieces and zero field failures.

4-Terminal Shunt Resistor SBBP 12W AEC-Q200

Factory view 1

Standard laboratory of high precision resistors 1

Download

SBBP系列规格书A1.3.pdf
